Featured Products

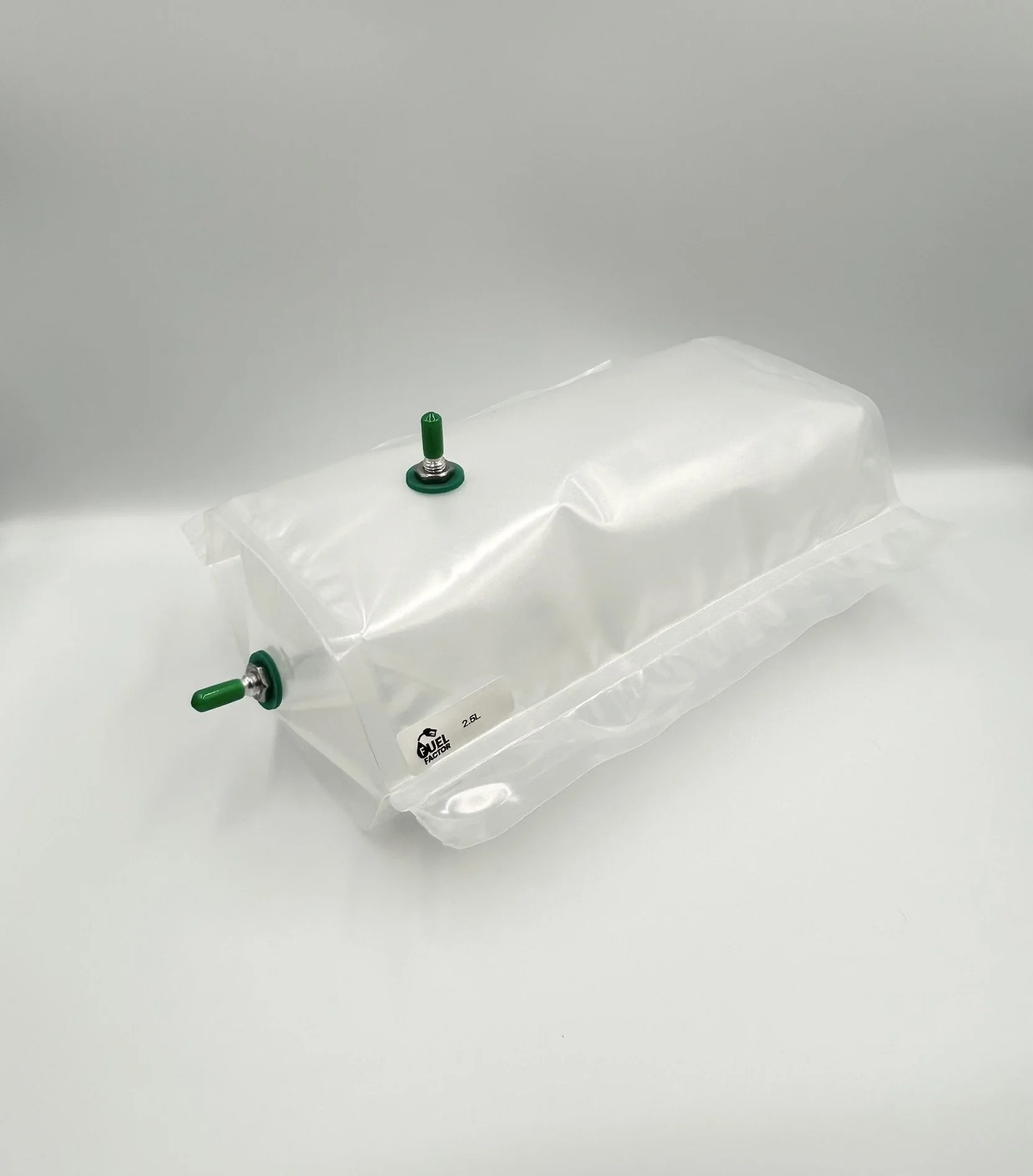

Multi layered, super tough and abrasion resistant fuel bags. Standard bags comes with a 6mm fuel ports for both the fill port and the clunk port. It is 100% safe to put a 6mm festo connection directly onto the fuel ports. You can also stretch standard polyurethane or tygon lines over the fuel ports. All standard bags have a felt clunk inside to diffuse any bubbles left after fueling.
Sizes range from 1L to 6L bags. Standard sizing is below:
1L:
Mounting Rails: 6mm x 4mm tubes
Rail spacing: 140mm (5.5”)
Length: 190mm (7.5”)
Height/Diameter: 90mm (3.5”)
1.5L:
Mounting Rails: 6mm x 4mm tubes
Rail spacing: 150mm (5.9”)
Length: 230mm (9”)
Height/Diameter: 95mm (3.7”)
2L:
Mounting Rails: 6mm x 4mm tubes
Rail spacing: 160mm (6.3”)
Length: 240mm (9.5”)
Height/Diameter: 105mm (4.1”)
2.5L:
Mounting Rails: 8mm x 6mm tubes
Rail spacing: 170mm (6.7”)
Length: 245mm (9.6”)
Height/Diameter: 120mm (4.7”)
3L:
Mounting Rails: 8mm x 6mm tubes
Rail spacing: 175mm (6.9”)
Length: 265mm (10.4”)
Height/Diameter: 130mm (5.1”)
3.5L:
Mounting Rails: 8mm x 6mm tubes
Rail spacing: 185mm (7.3”)
Length: 260mm (10.2”)
Height/Diameter: 135mm (5.3”)
4L:
Mounting Rails: 10mm x 8mm tubes
Rail spacing: 195mm (7.7”)
Length: 260mm (10.2”)
Height/Diameter: 140mm (5.5”)
4.5L:
Mounting Rails: 10mm x 8mm tubes
Rail spacing: 215mm (8.5”)
Length: 265mm (10.4”)
Height/Diameter: 140mm (5.5”)
5L:
Mounting Rails: 10mm x 8mm tubes
Rail spacing: 220mm (8.6”)
Length: 280mm (11”)
Height/Diameter: 150mm (5.9”)
6L:
Mounting Rails: 10mm x 8mm tubes
Rail spacing: 220mm (8.6”)
Length: 350mm (13.75”)
Height/Diameter: 150mm (5.9”)

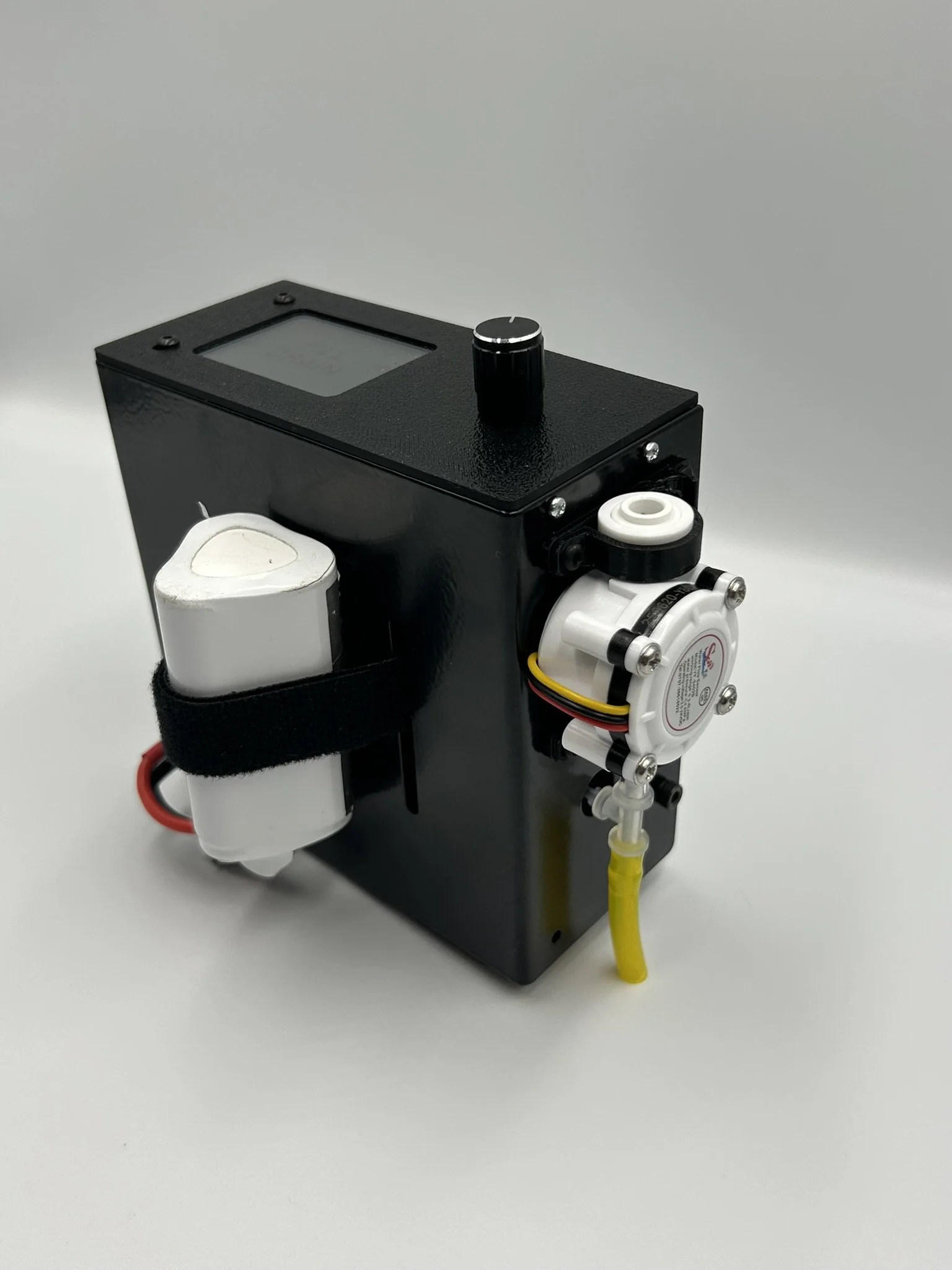

Three fill modes:
1-Bag filling (fill until pressure set point reached)
2-Infinite tank fill (fill until user stops the pump)
3-Set volume fill (fill until desired volume achieved)
Other features:
-Volume counting to help pilots understand their volume consumption, setup fuel telemetry and flight timers
-Auto draining of tanks. Pump automatically stops when bags or tanks are empty
-Auto-off. After the pump detects no activity for 5min, it automatically switches off. Never required to unplug the battery
-Super bright LCD screen, visible even on sunny summer days
-Adaptable to commercially available RC fuelers
-User updates with SD card
The Smart Fuel Pro is designed to work with the 12v Greylor pump that is included with both Jersey Modeler and RC Fueling Systems pumps. If you want to use your old 12v Greylor pump, you can purchase the fueler box with the pump. If you’d like a fresh new pump, your fueler will come with the pump mounted to the box when it arrives.
Mounting formers available for select models. Formers come with bushings to protect the bag from the metal mounting clamps. Mounting rails and clamps are best purchased from Amazon (cheaper and free shipping!) If you don’t see the model you’re interested in, please reach out to FuelFactorRC@Gmail.com.
